Technical Data
Home > Sensing Edges > TS26
TS26
Colour Black, Red, Yellow
Actuation Force <140N (14kg) (80mmø)
Overtravel movement 8mm (250N)
Actuating Distance 2mm (80mmø)
Weight 700g/m
Materials EPDM (black/red), NBR (black), TPE (red/yellow), Aluminium or Plastic (channel)
IP Rating IP65 (available in IP67)
Operating Temperature -20°C to +50°C
Max Voltage / Switching Current 30V d.c / 1A
Colours available
Full Range

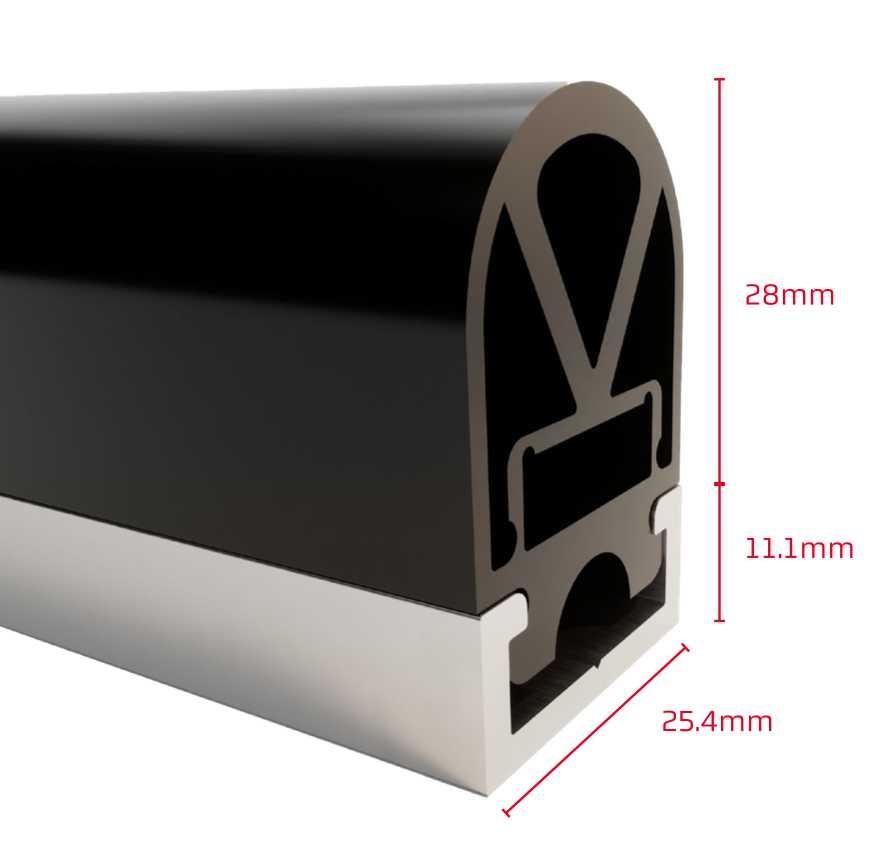

TS26 is a compact yet incredibly robust sensing edge, built to deliver reliable performance across a wide range of safety applications. Its ‘V-shape’ design enables detection from both side and head-on impacts, ensuring full coverage and consistent protection. It covers all bases within our smaller profile range, the TS26 combines adaptability for bespoke solutions with the strength to perform in demanding environments while not compromising on durability or long-term performance.
We offer a wide range of standard safety products available under established part numbers for quick and easy ordering. For more specific needs, we also supply bespoke versions tailored to your exact requirements. Custom part numbers and detailed technical drawings are provided for all special configurations, ensuring accurate specification, repeatability, and smooth reordering.
Simple to install and can be used with either our 4-wire failsafe or 2-wire systems with an end-of-line resistor, depending on your safety requirements. We offer bespoke edge solutions tailored to your application, complete with detailed system drawings to support quick and accurate setup. For expert guidance and further information, our friendly sales team is always here to help.
Tapeswitch offers a variety of accessories and customisation options to enhance the performance and flexibility of our sensing edges. Available extras include a range of connectors, IP67-rated solutions for demanding environments, and bespoke options such as mitred corners, stud fixings, and countersunk pre-drilled holes for seamless installation. Whether you require a standard setup or a fully customised configuration, our team can deliver a sensing edge system tailored to your application.
